Home>>Products>>Schmied Vacuum Pump>>Piston Vacuum Pump

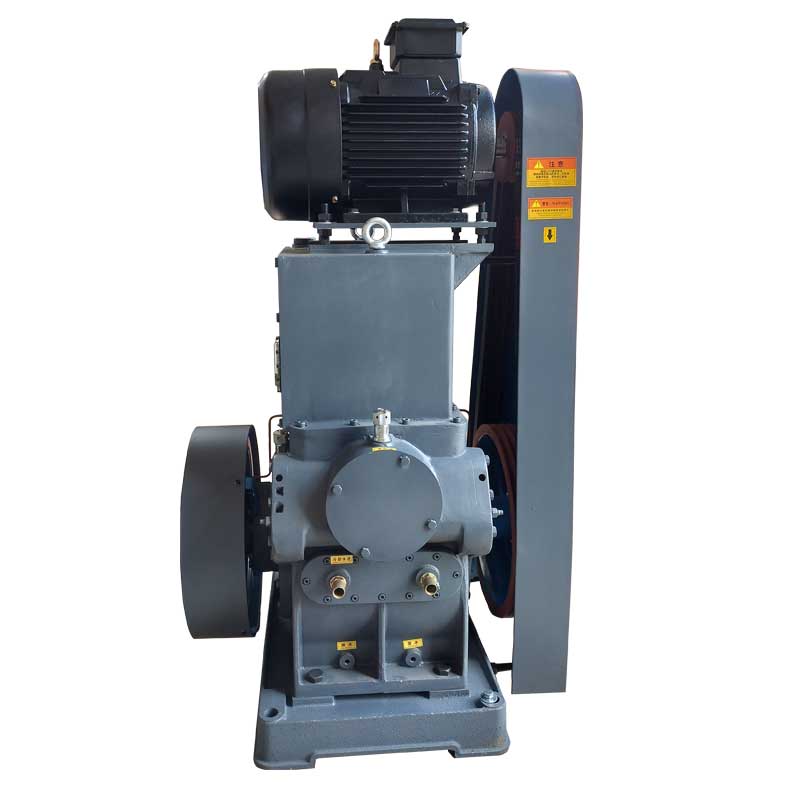

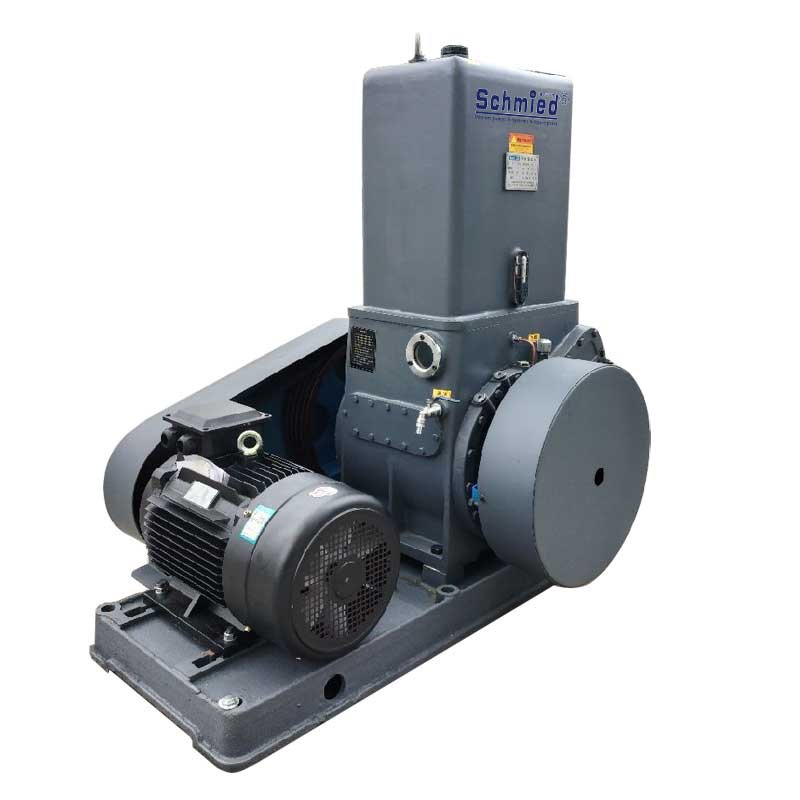

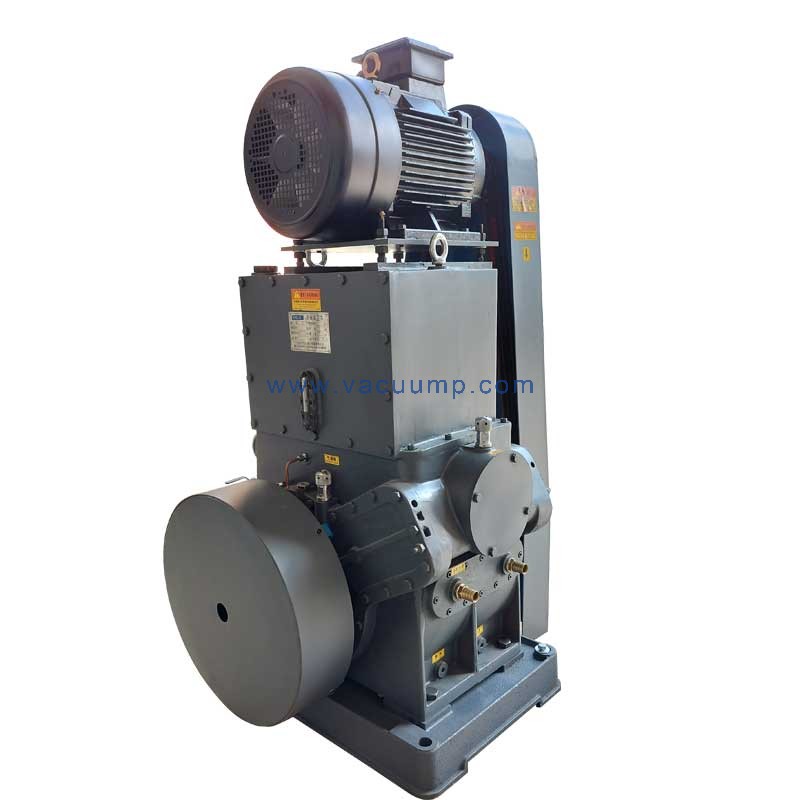

Schmied H150 slide valve piston industrial coating vacuum pump
Schmied H150 slide valve piston industrial coating vacuum pump
Schmied H150 slide valve piston industrial coating vacuum pump
Schmied H150 slide valve piston industrial coating vacuum pump

Schmied H150 slide valve piston industrial coating vacuum pump

classification：Piston Vacuum Pump

Introduction:
Pump Model：H150
Nominal Capcaity：150L/s
Ultimate pressure：1pa
Motor Power：15KW
voltage：50hz/60hz(/380V-440V)
Interface Size：150MM
Out Size：80MM
Cooling way:Water cooled
Weight:840Kg

Price:

>>Login to view product pricesLogin now
