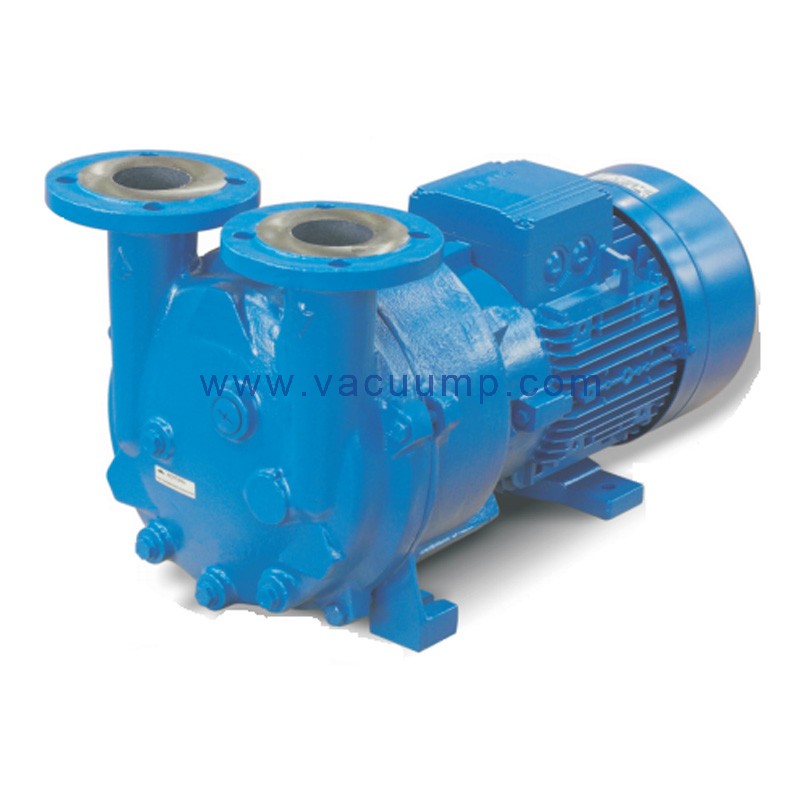

Schmied 2BV Liquid ring vacuum pump

Schmied 2BV series water ring vacuum pump for the whole structure - machine pump coaxial single-stage pump.The shaft seal adopts mechanical seal, which has the characteristics of simple structure, simple installation, oil-free, safe and reliable.

Schmied 2 bv series water ring vacuum pump suitable for pumping gas and wet steam, inspiratory pressure can be up to 33 mbar absolute pressure (vacuum) 97%, when Schmied 2 bv water ring type vacuum pump under the conditions of inspiratory pressure is lower than 80 mbar long-term work, should join protection tube to the pump cavitation, Schmied 2 bv water ring type vacuum pump, such as air ejector suction pressure can reach 10 mbar, sprayer can be installed directly on the vacuum pump suction mouth, used as a compressor, its maximum pressure 0.26 MPa (pabs).

Schmied 2BV series water ring vacuum pumps and compressors are widely used in petroleum, chemical, pharmaceutical, food, sugar industry and other fields.In the working process, the gas compression process is isothermal, so in the compression and suction inflammable and explosive gas, it is not easy to explode, so its application is more extensive.
