Schmied RA0302D Oil Rotary Vane Vacuum Pump Replace BUSCH

classification:Oil Rotary Vacuum Pump

Introduction:
Pump Model:RA0302D
Nominal Capcaity:300/360m3/h
Ultimate pressure:0.5mbar
Motor Power:7.5KW
voltage:50hz/60hz(200-240V/380V-440V)
Sound level :75dB
Interface Size:G2
Oil Qt: 6.5L
weight :200kg


Price:

>>Login to view product pricesLogin now

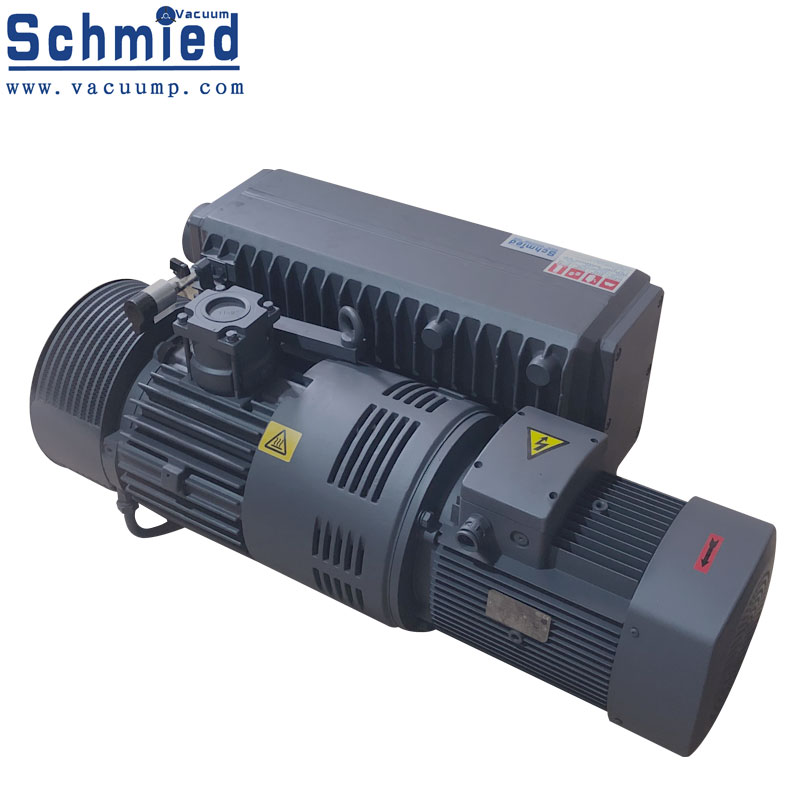

Schmied RA0302D.jpg



Typical applications:

Vacuum packaging and food processing, thermal forming, vacuum degassing, defoaming, concentration, vacuum drying, vacuum adsorption, and other processes

Principle of vacuum pump.jpg

Introduction to Schmied oil rotary vane vacuum pump:

Schmied oil rotary vane vacuum pump belongs to the proven Schmied mature product series.They are designed for a variety of applications, such as vacuum packaging, food processing, pneumatic conveying, and so on.

Schmied rotary vane vacuum pumps stand out for their rugged durability and reliable operation.And these are just a few of the many reasons Schmied screwing technology has long been an industry benchmark.

Over the years, Schmied has been developing and optimizing rotary technology with a focus on economy and operational reliability.After continuous research and development, efficiency has finally become the most prominent advantage of this technology
