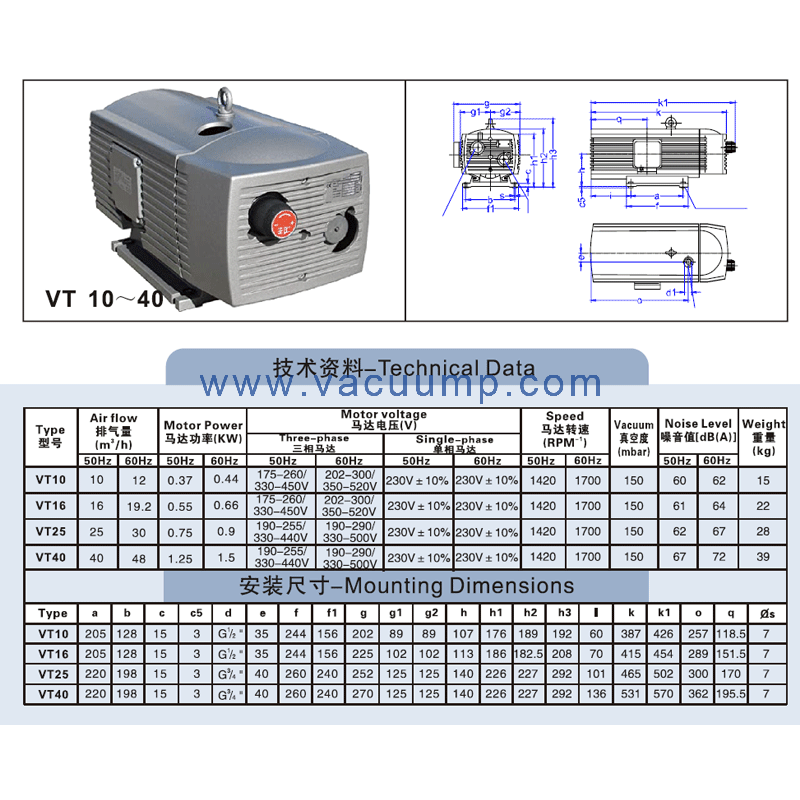

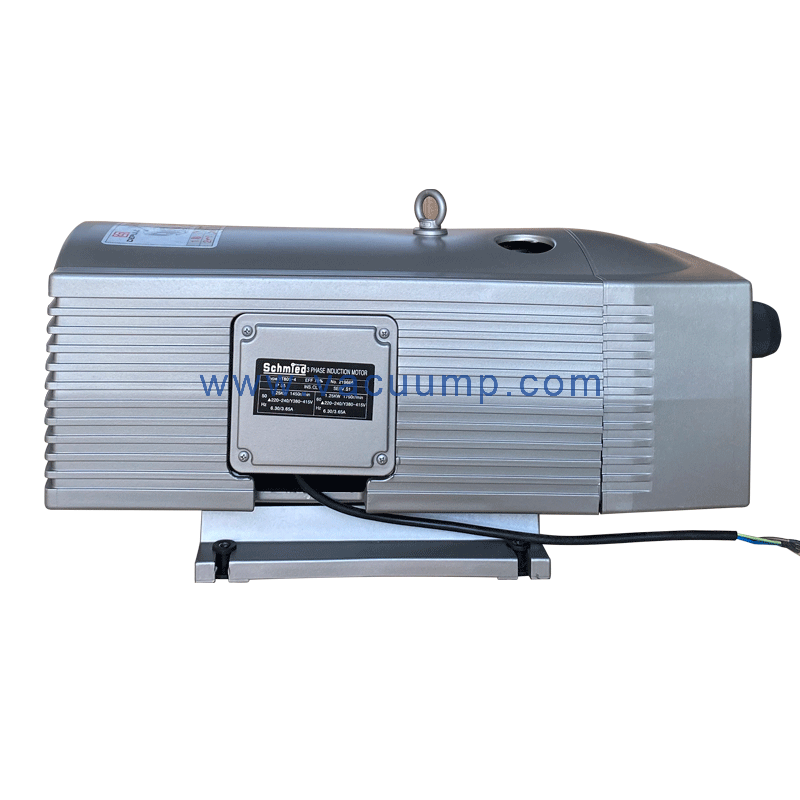

Schmied VT16 25 40CFM Industrial Medical dry Oil-free Rotary vane vacuum pump

Vacuum pump repair parts

Brief Introduction of Schmied dry rotary vane vacuum pump:

Compact, reliable, and efficient - these are the outstanding characteristics of Schmied dry rotary vane vacuum pumps and compressors.Because of their lubrication-free operation, they can be used in many industrial applications that require fast, clean vacuum or compressed air.It includes vacuum pump, compressor and combined vacuum pump and compressor.

Over the years, we have been developing and optimizing our dry rotary technology.High levels of availability and better performance are the result of continuous product improvement.

Schmied vacuum pumps and compressors are typically characterized by their rugged construction and permanently lubricated bearing technology.

Working principle:

The cylinder body is equipped with a rotor with multiple blades, which is installed in a centrifugal way.As the rotor rotates continuously, the rotor slides out and a cavity is formed between the rotor and the cylinder block.

The pumping medium is inhaled and retained in these cavities.It is compressed by continuous rotation and delivered to the vent.Sealing is achieved by self-lubricating high performance blades.
